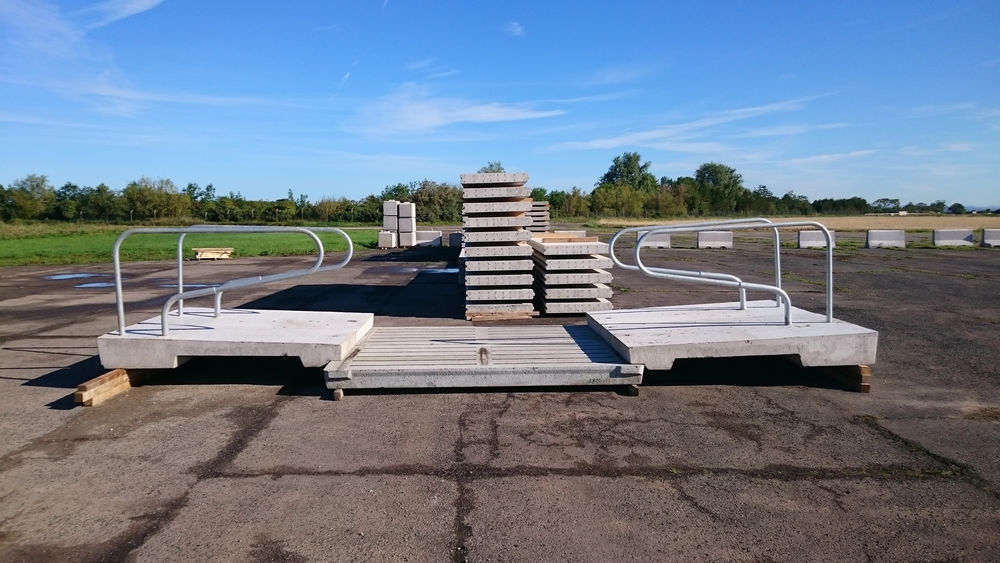

Our cubicles are made with the same high strength concrete that our panels are made from. We can produce with or without frames to suit your needs. They are available in three sizes which are detailed below, these sizes should enable any footprint to be filled completely. All our cubicles have a non-slip finish.
Dimensions for the full, the and the half cubicles are as follows:

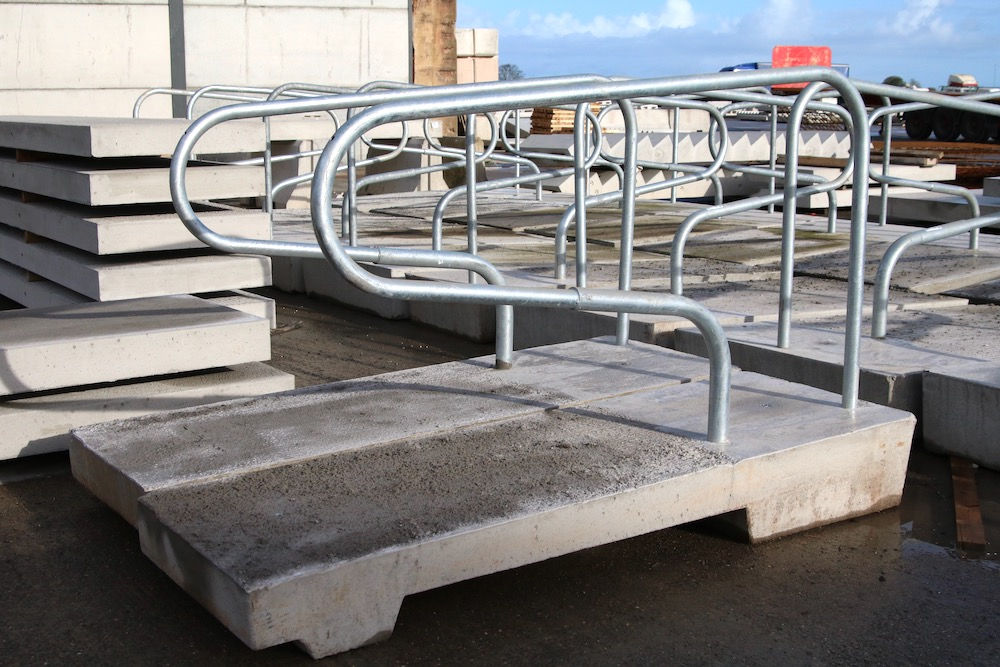

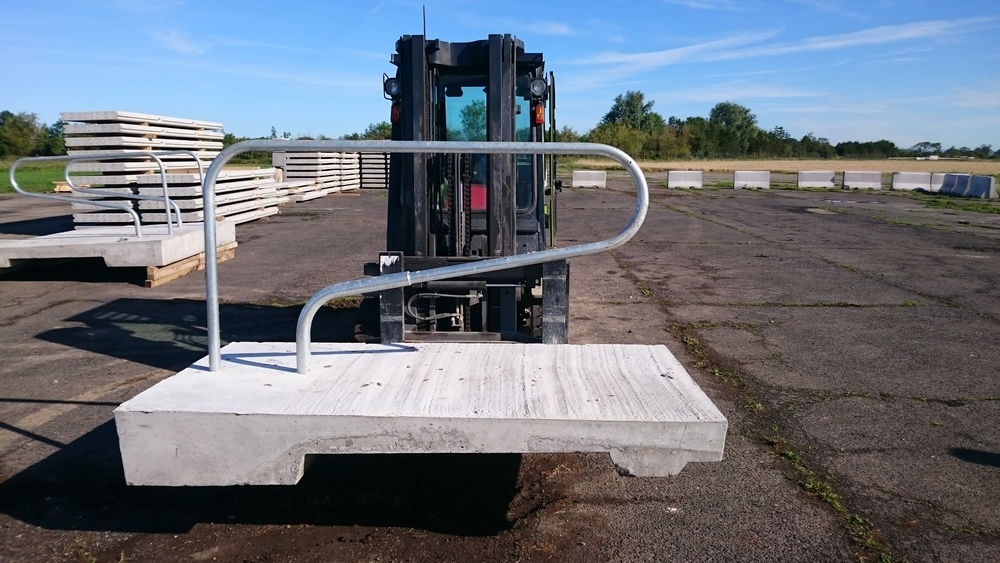

Full cubicle with frame:
2223mm x 1174mm x 279mm high at the back with a 100mm fall to the front.
Weight = 1550kg.

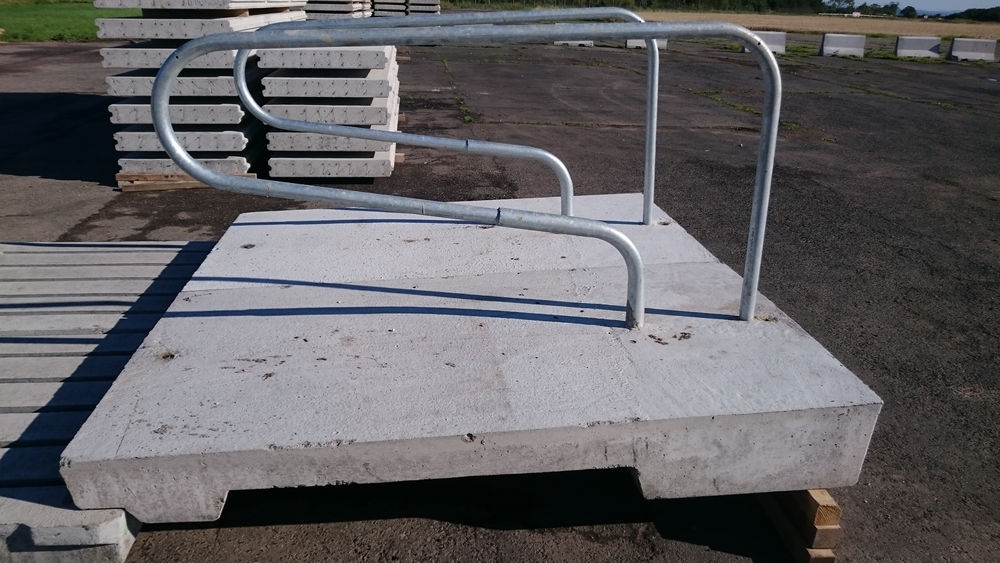

Half Cubicle with frame:
2223mm x 768mm x 279mm high at the back with a 100mm fall to the front.
Weight = 1020kg.
Half fill out cubicle (plain, no frame):
2223mm x 584mm x 279mm high at the back with a 100mm fall to the front.
Weight = 768kg.
